The TFP + HEPA ultimate air cleaner

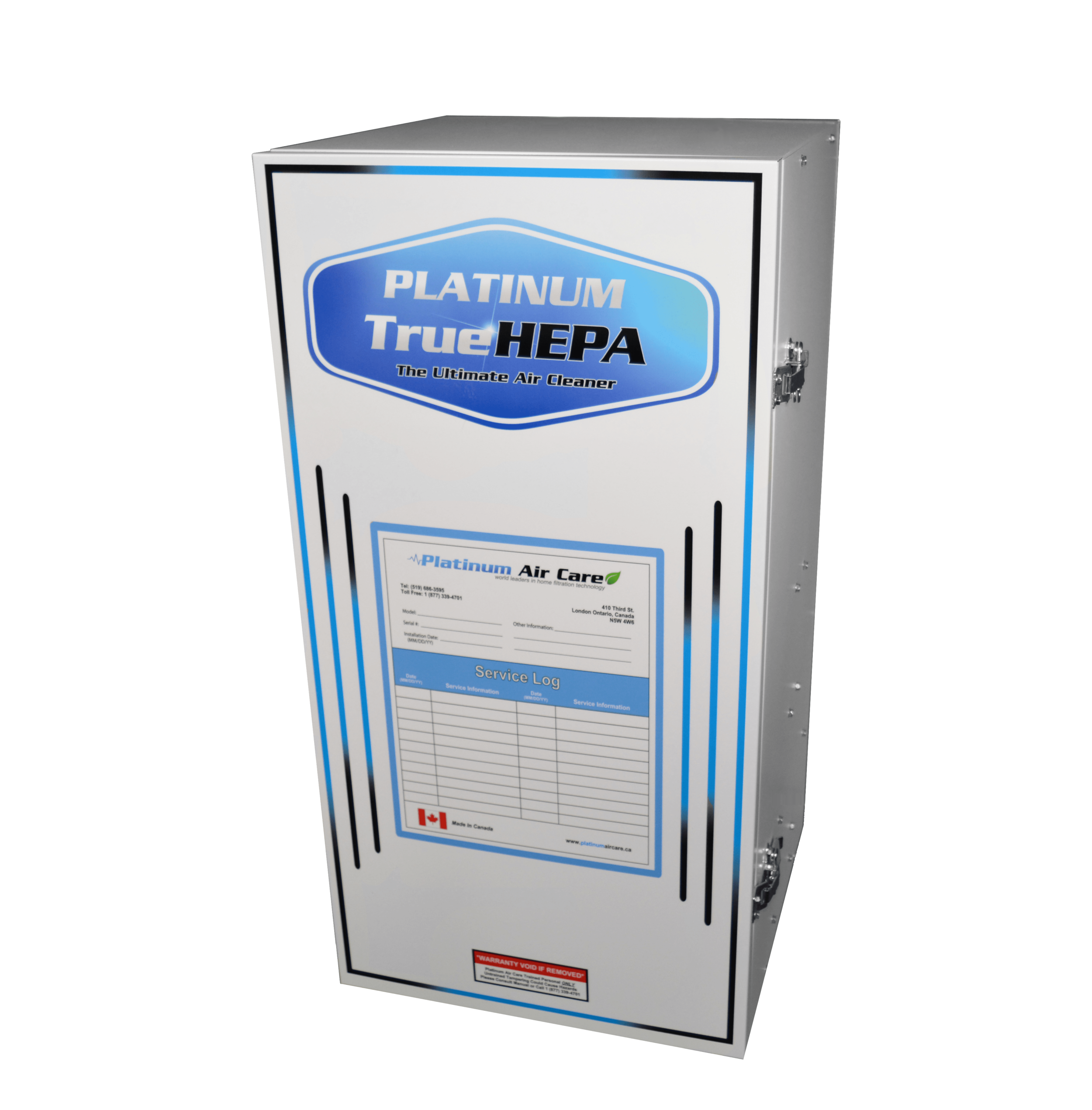

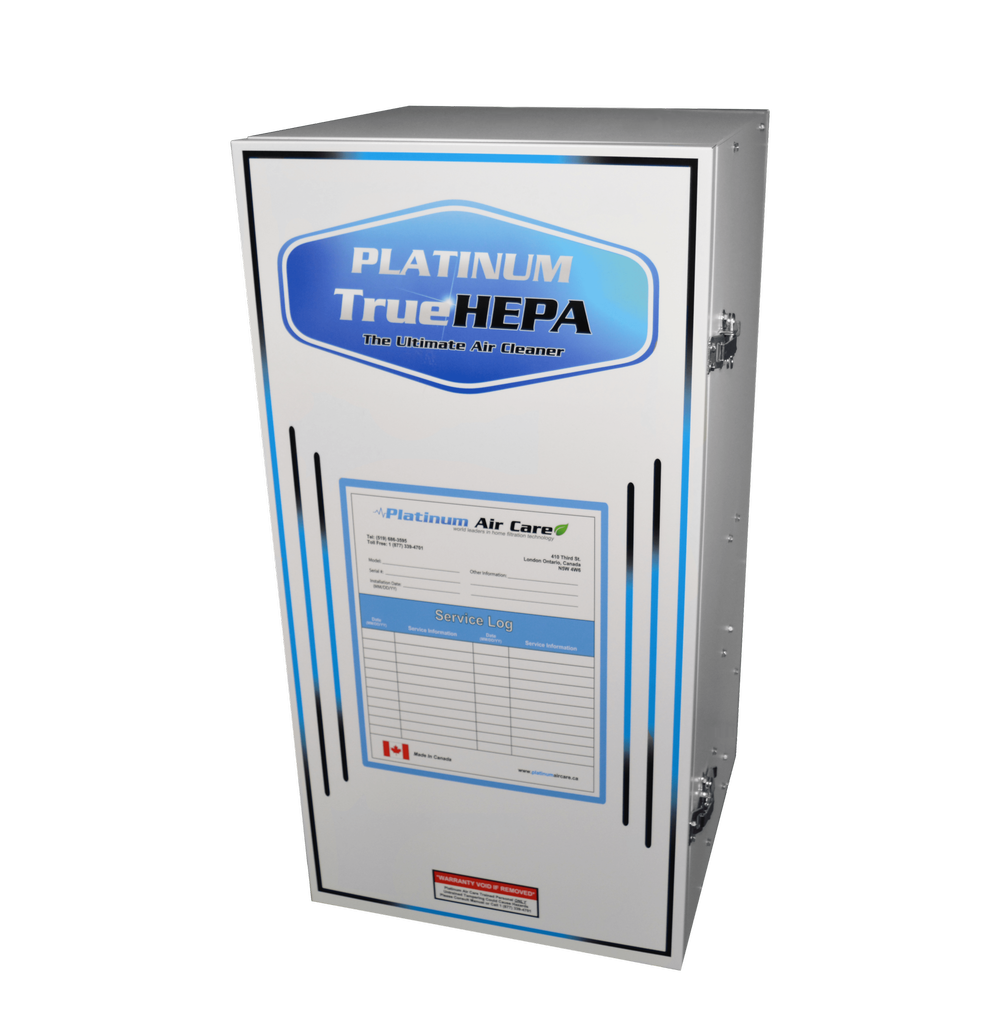

Platinum TrueHEPA Whole-Home HEPA Filter System for Your Furnace
Platinum TrueHEPA is a whole-home HEPA filter system for your furnace: it combines two particle capture technologies, a TFP collector and a HEPA filter, to stop 99.97% of particles as small as 0.3 microns. It is installed directly onto the return plenum of your forced-air system, out of sight, and cleans the air throughout your home.
Free in-home air test in London and Southwestern Ontario: about 30 minutes, and no obligation.
- TFP + HEPA: two particle capture technologies
- Outperformed other brands in a 14-month trial
- Minimal maintenance, easy filter replacement
- 5-year warranty, made in Canada
TFP + HEPA = long-lasting 99.97% clean air
How the Platinum TrueHEPA Works
Platinum TrueHEPA combines two particle capture technologies, TFP and HEPA, to clean the air throughout your home.
The particle capture efficiency and non-loading characteristics of the TFP primary cartridge capture fine particles and ensure maximum HEPA (High Efficiency Particulate Air) performance and filter life.

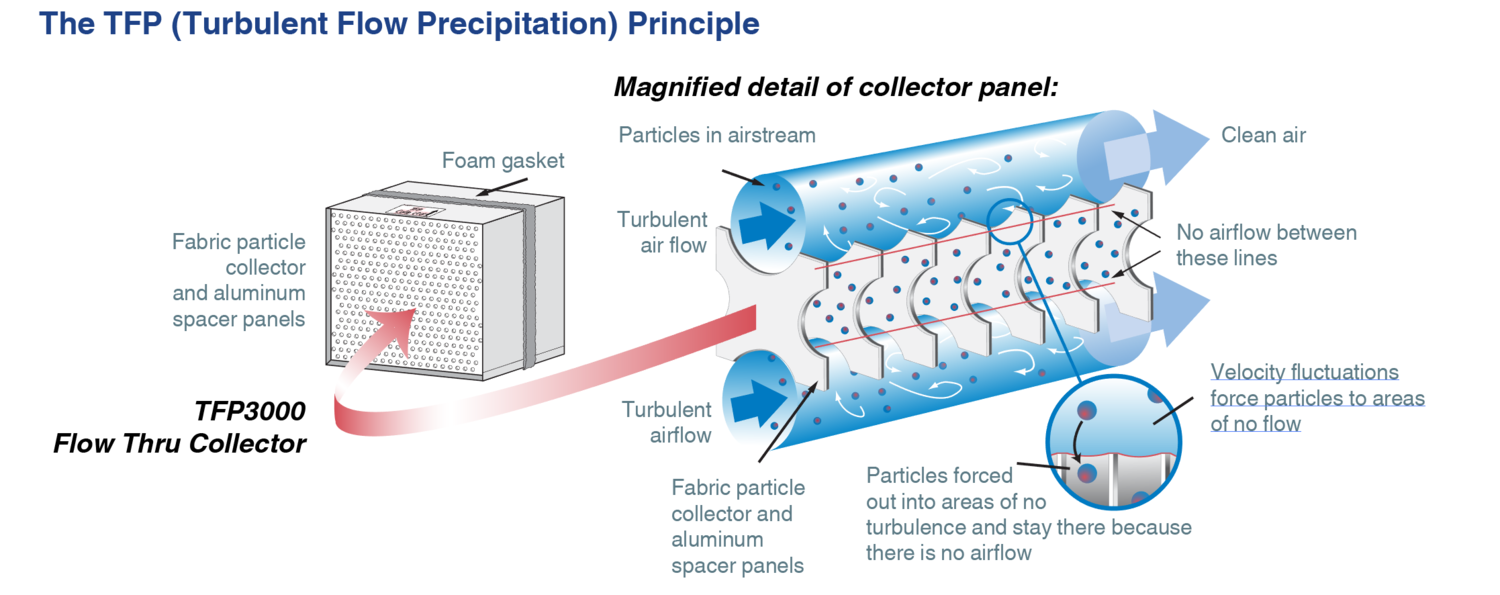

In the Platinum TrueHEPA Air Cleaner, the walls of the internal airway which the dirty air passes through are made of a fabric that traps particles as they are flung out of the airstream. The result is a high rate of removal of even the smallest particles, with no loading of the primary TFP cartridge to obstruct airflow.

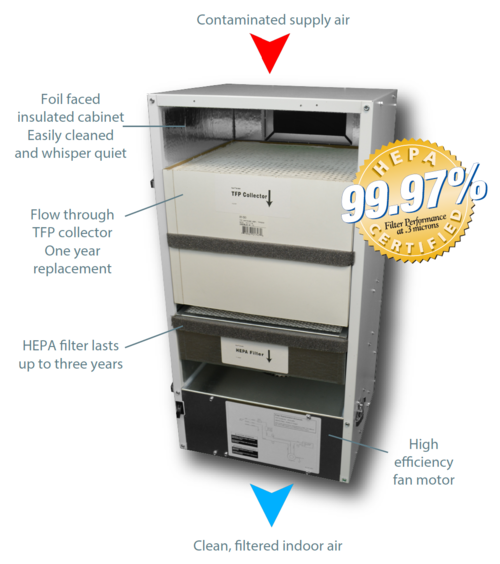

- Flow-through TFP collector: one-year replacement
- HEPA filter: lasts up to three years
- Foil-faced insulated cabinet: easily cleaned and whisper quiet
- High-efficiency fan motor
Research has proven it
More Effective Than Other Furnace Air Cleaners

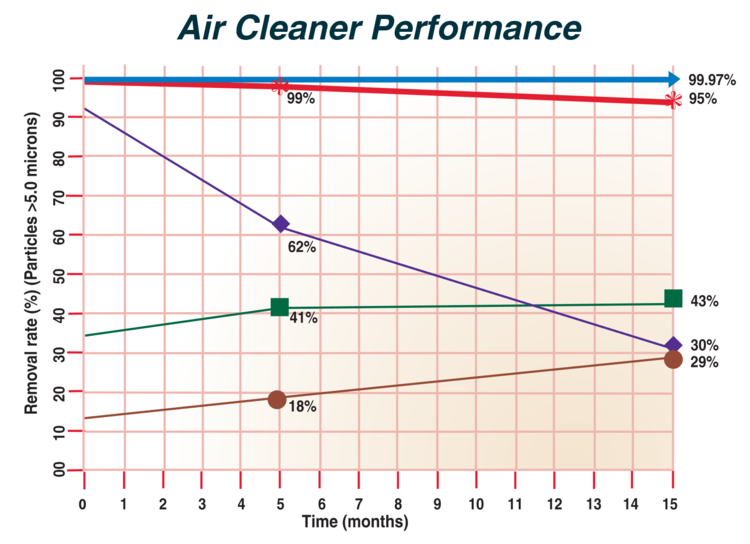

In test results confirmed by Air Filter Testing Laboratories Inc., the Platinum TrueHEPA Air Cleaner outperformed four competitive air cleaners during a 14-month trial based on clean air delivery rates (CADR rating). Most importantly, the TrueHEPA filter’s performance does not decay while maintaining a high MERV rating (Minimum Efficiency Reporting Value).
- 99.97%filter performance at 0.3 microns
- MERV 15system efficiency
- 14 monthsof testing against four competitive air cleaners
- No decayin the TrueHEPA filter’s performance
- Platinum TrueHEPA air cleaner (99.97%). Performance does not decay.
- Competing air cleaner (95%). Minor efficiency drop at the end of the test.
- Typical deep pleated media filter (43%). Particle-stopping ability is comparatively low.
- Popular brand of electronic air cleaner (30%). Significant performance drop.
- Self-charging electrostatic filter (29%). Lowest performance in the test.
Efficiency × initial airflow = removal rate. The drop-off in efficiency of media and electrostatic filters is due to the decrease in airflow as they load with particles.
Indoor air quality
What a Whole-Home HEPA Filter Takes Out of Your Air
According to the Environmental Protection Agency, Americans, on average, spend approximately 90 percent of their time indoors, where the concentrations of some pollutants are often 2 to 5 times higher than typical outdoor concentrations.
Indoor air quality
The air in your home is loaded with pollen, dust, pet dander, dust mites, and their droppings, plus many other health-threatening particles. In today’s tighter-built, better insulated homes, poor air quality can be compounded with air pollution such as gaseous pollutants, odors, and humidity that result in mold and mildew.
The smallest particles
Some of these particles trigger allergies, and the smallest lodge in the lining of the lungs.
Relative particle size
Particles are measured in microns. A human hair is about 50 to 100 microns in diameter.
- Large-size particlesPollen spores5–100 microns
- Mid-size particlesDust mite feces0.3–10 microns
- Sub-microscopic particlesHousehold dust0.001–10 microns
- SmokeTobacco smokeLess than 1 micron
Platinum TrueHEPA’s TFP (Turbulent Flow Precipitation) collector, combined with a HEPA filter (High Efficiency Particulate Air), stops 99.97% of all particles such as pollen and fungus spores, cigarette carcinogens and carbons, pet dander, pet hair, dust mite feces, molds, and bacteria as small as 0.3 microns in size.
How much of it is in your air? The free in-home air test measures the airborne particles and dust in your home, and the technician goes through every reading with you before leaving.
Why Platinum TrueHEPA
Five Reasons Platinum TrueHEPA Is the Best HEPA for You
The Platinum TrueHEPA Air Cleaner with TFP will give you greater long-term protection than the four competitive air cleaners it was tested against.
Cleaner air with Platinum TrueHEPA
The TFP + HEPA ultimate air cleaner forms part of an excellent strategy for improving indoor air quality (IAQ).
-
Far more effective
Platinum TrueHEPA removes health-threatening particles from the air far more effectively than the other air cleaners in its 14-month trial.
-
Lowest maintenance
The lowest maintenance air cleaner available. A check-up is required only once a year.
-
The whole home, all the time
It cleans the air throughout your home, benefiting everyone in the family, all the time.
-
Air moves freely
It allows air to circulate freely without putting any extra load on your air distribution system.
-
No ozone
Unlike electronic air cleaners, Platinum TrueHEPA does not generate ozone.
Quick and easy duct-mounted installation
How a Furnace HEPA Bypass System Cleans the Whole House

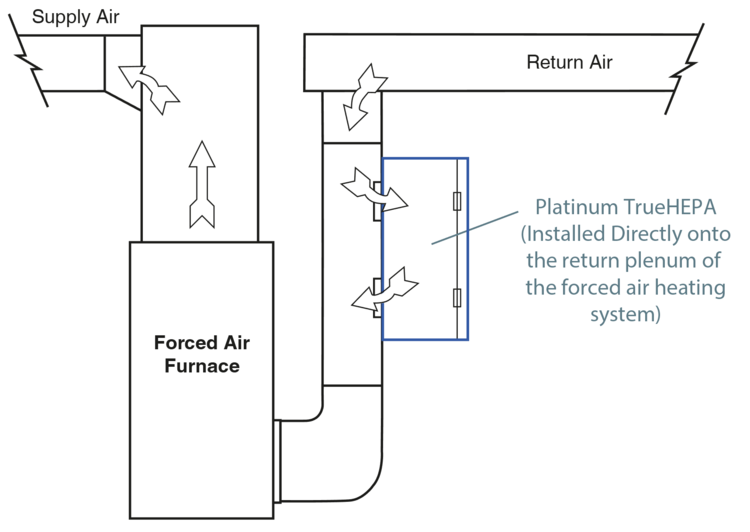

The Platinum TrueHEPA works with all central air heating and cooling systems. It is installed directly onto the return plenum of your furnace, out of sight, and because it is self-powered and normally installed in a bypass configuration, it does not affect the performance of your air distribution system.
- 4.5×In an average 2,500 sq. ft. home, all the air passes through the furnace 4.5 times every hour.
- 45%With the TrueHEPA drawing off 10% of that air continuously, 45% of the air is cleaned every hour.
- 10×Depending on the home, all the air passes through the TrueHEPA 10 times every 24 hours, from the small rooms and the large ones.
Two different jobs. Filtration catches particles as the air passes through it. UV-C and PCO treat what a filter cannot catch: odors and airborne contaminants. For those, the Platinum PURE is installed on the same furnace, so a home that wants both ends up with one of each. The MedicAir® Pro does both jobs in one portable cabinet.
Compare whole-home and portable air purifiersQuestions
Platinum TrueHEPA Whole-Home HEPA Filter FAQ
Will the Platinum TrueHEPA work in any kind of home?
The Platinum TrueHEPA Air Cleaner works with all central air heating and cooling systems and is installed directly onto the return plenum of the HVAC system.
How much does a whole-house HEPA filter system cost?
It depends on the equipment and on the house: a portable and a duct-mounted install are not the same job, and what suits one home is wrong for the next. That is what the free in-home air test is for, and it costs nothing.
Will the Platinum TrueHEPA help with allergies?
Many allergies are caused by exposure to airborne allergens, including pollen and fungus spores. The Platinum TrueHEPA captures 99.97% of the submicroscopic airborne particulates (0.3 microns) and even more of the larger particles, such as pet dander and dust mite feces. Those are the things most people react to, so less of them in your air can only help.
There is a smoker in my home. Will the Platinum TrueHEPA help?
Yes. The Platinum TrueHEPA can remove about 90% of the particles contained in tobacco smoke. The gases and odor in smoke are a different job: the Platinum PURE treats those on the same furnace.
Will it affect the performance of my air distribution system?
No. Platinum TrueHEPA is self-powered and is normally installed in a bypass configuration.
How can a bypass system clean all the air in the house?
In an average 2,500 sq. ft. home, all the air passes through the furnace 4.5 times every hour. With Platinum TrueHEPA in a bypass configuration, drawing off 10% of the air continuously, 45% of the air will be cleaned every hour. Depending on the condition of the home, all the air will pass through the Platinum TrueHEPA 10 times every 24 hours. The TrueHEPA cycles through the air from both the small rooms and the large rooms.
Does it have to run continuously to keep the air clean?
You will get the maximum benefit from your Platinum TrueHEPA Air Cleaner if it runs continuously. A timer can be used to save energy if the house is left empty for extended periods of time.
Will I still need filters in my furnace?
Yes, as they help keep your furnace free of dust and dirt, and by intercepting large particles they reduce the load on the Platinum TrueHEPA unit. This helps it do what it does best: trap the very small particles that pass through the furnace filter.
How much maintenance is needed?
We recommend an annual check-up to make sure the fan and motor are in good operating condition. The collectors and HEPA filters should be checked and replaced as necessary. No clean-out is needed. Unlike other air cleaners, Platinum TrueHEPA’s TFP collector is used as a pre-filter, so the HEPA filter, and in fact the whole unit, needs less maintenance.
Where can I get replacement filters for my Platinum TrueHEPA?
From Platinum Air Care: replacement TFP collectors and HEPA filters are ordered through us, and we ship filters and parts anywhere in North America. If you would rather not change them yourself, book a service visit, and the collectors and HEPA filter are checked and replaced as necessary.
How quickly will I notice a difference?
An improvement in air quality is often apparent within 12 hours of continuous use after turning on the Platinum TrueHEPA.
Will we dust and vacuum less often?
The Platinum TrueHEPA Air Cleaner removes almost 100% of the larger particles circulating in the air, such as dust. Airborne dust is what settles on your furniture and floors, so less of it in the air means less of it to clean.
Maintenance, warranty, and specifications
Low-Maintenance Furnace HEPA Filter With a 5-Year Warranty
Unlike other air cleaners, Platinum TrueHEPA’s TFP collector is used as a pre-filter, so the HEPA filter, and in fact the whole unit, needs less maintenance. The flow-through TFP collector is a one-year replacement, the HEPA filter is rated to last up to three years with little to no performance drop, and no clean-out is needed.
We recommend an annual check-up to make sure the fan and motor are in good operating condition. The Platinum TrueHEPA has a 5-year warranty, and it is made in Canada.
Platinum TrueHEPA specifications
- Model number
- TFP-PLATINUM
- Filtration
- TFP (Turbulent Flow Precipitation) collector + HEPA filter
- Filter performance
- 99.97% at 0.3 microns
- System efficiency
- MERV 15
- Motor and blower
- High-efficiency PSC motor, 150 CFM at 0.4" WC
- Power
- 110 watts, 120 VAC
- Power cord
- Standard three-prong plug, 5′5″ (1.6 m) cable
- Dimensions
- H 29″ × W 14.5″ × D 14.75″
- Replacement
- TFP collector: one year. HEPA filter: up to three years
- Warranty
- 5 years
- Made in
- Canada
