York® TM9E 95% AFUE Single-Stage Furnace
A compact, high-efficiency gas furnace. The York TM9E pairs a single-stage burner with a five-speed ECM blower, in a 33-inch-tall cabinet that installs upflow, horizontal, or downflow. Platinum Air Care installs the York TM9E in homes across London and Southwestern Ontario.
Comparing York furnaces? See the York lineup
At a glance York’s own ratings
- Price Range
- $
- Efficiency Range
- 95% AFUE
- Warranties
- Lifetime heat exchanger, 10-year parts*
*York’s limited warranty, when the furnace is registered online within 90 days of installation. Ask us and we’ll help you register it.
York LX Series compact gas furnace
York TM9E: 95% AFUE in a Compact, Multi-Position Cabinet
The TM9E is a compact gas furnace from York’s LX Series. Every size is rated 95% AFUE or higher, so about 95% of the gas it burns over a heating season becomes heat for your home. Its single-stage burner runs at one heat output, and a five-speed ECM blower motor carries the heat through your ducts.
It runs on natural gas, and every size except the smallest converts to propane with York’s conversion kit.
- 95% AFUE
- Single-stage burner
- 33-inch-tall cabinet
- Upflow, horizontal, or downflow
Single-stage, two-stage, or modulating?
York builds its furnaces with three kinds of burner: single-stage, two-stage, and modulating. The TM9E’s burner is single-stage.
- Single-stage This page York TM9E 95% AFUE One heat output, with a five-speed ECM blower.
- Two-stage York TM9V 96% AFUE Two-stage gas furnaces can shift their level of performance to track temperatures more accurately and provide greater comfort.
- Modulating York YP9C up to 98% AFUE A modulating burner continuously adjusts its heating output in small steps to save fuel.
Features
York TM9E Furnace Features
- 95% AFUE or higher in every size, from 26,000 to 120,000 BTU/h input
- Single-stage burner with hot surface ignition: no pilot light
- Five-speed, direct-drive standard ECM blower motor
- Tubular aluminized-steel primary heat exchanger and a corrosion-resistant stainless-steel secondary heat exchanger
- 100% shut-off main gas valve and a blower door safety switch
- Protection against a blocked air intake, exhaust vent, or condensate drain
- Built-in self-diagnostics with a fault code display
- Compact 33-inch-tall cabinet: upflow or horizontal (left or right), and converts to downflow
- Natural gas; every size but the smallest converts to propane with a York kit
- External air filters, for flexibility in meeting your home’s indoor air needs
Benefits
Why Choose a 95% Single-Stage Furnace Like the TM9E
-
More of your gas becomes heat
The TM9E is a condensing furnace rated 95% AFUE or higher, and its ECM blower motor is built for lower electrical power use and improved air conditioner SEER ratings.
-
A compact, multi-position cabinet
At 33 inches tall, the TM9E installs upflow, horizontal, or downflow, in a basement, closet, alcove, attic, or garage.
-
Quiet inducer, insulated blower
The TM9E’s inducer is built for quiet operation, and its blower compartment is insulated to hold in both heat and sound.
-
Lifetime heat exchanger warranty
When the TM9E is registered online within 90 days of installation, York’s limited warranty covers its heat exchangers for life in a home, and its parts for 10 years. Ask us and we’ll help you register it.
Technical specifications
York TM9E Specifications: Ten Models
Ten models on six heating inputs, from 26,000 to 120,000 BTU/h. Which one fits depends on your home and your ducts.
| Model | Heat input | Heat output | AFUE | Cabinet width | Nominal airflow |
|---|---|---|---|---|---|
| TM9E026A08MP12 | 26,000 BTU/h | 25,000 BTU/h | 96.0% | 14-1/2 in. | 800 CFM |
| TM9E040A10MP12 | 40,000 BTU/h | 38,000 BTU/h | 95.0% | 14-1/2 in. | 1,000 CFM |
| TM9E060A10MP12 | 60,000 BTU/h | 57,000 BTU/h | 95.0% | 14-1/2 in. | 1,000 CFM |
| TM9E060B12MP12 | 60,000 BTU/h | 57,000 BTU/h | 95.0% | 17-1/2 in. | 1,200 CFM |
| TM9E080B12MP12 | 80,000 BTU/h | 76,000 BTU/h | 95.0% | 17-1/2 in. | 1,200 CFM |
| TM9E080C16MP12 | 80,000 BTU/h | 76,000 BTU/h | 95.0% | 21 in. | 1,600 CFM |
| TM9E080C20MP12 | 80,000 BTU/h | 76,000 BTU/h | 95.0% | 21 in. | 2,000 CFM |
| TM9E100C16MP12 | 100,000 BTU/h | 95,000 BTU/h | 95.0% | 21 in. | 1,600 CFM |
| TM9E100C20MP12 | 100,000 BTU/h | 95,000 BTU/h | 95.0% | 21 in. | 2,000 CFM |
| TM9E120D20MP12 | 120,000 BTU/h | 114,000 BTU/h | 95.0% | 24-1/2 in. | 2,000 CFM |
- Fuel
- Natural gas; converts to propane (LP) with a York kit, every model except the TM9E026
- Heating
- Single-stage burner, hot surface ignition
- Blower
- Five-speed, direct-drive standard ECM motor, 1/3 to 1 HP by size
- Position
- Multi-position: upflow or horizontal (left or right), converts to downflow
- Cabinet
- 33 inches tall; 14-1/2, 17-1/2, 21, or 24-1/2 inches wide
- Heat exchangers
- Tubular aluminized-steel primary; stainless-steel secondary
- Thermostat
- Conventional thermostat (our thermostats)
- Cooling
- Ready for add-on cooling: control transformer and blower relay supplied
- Venting
- Two-pipe (sealed combustion) on every model, or one-pipe on every model except the TM9E026; through a side wall or the roof
- Air filter
- External, outside the furnace cabinet
- Series
- York LX Series
- Warranty
- Lifetime heat exchanger, 10-year parts, 5-year unit replacement option*
*York’s limited warranty: register the furnace online within 90 days of installation (or of closing, for a new home) for the lifetime heat exchanger and 10-year parts warranties, and for the 5-year unit replacement option, which replaces the furnace if its heat exchanger fails from a covered defect within 5 years, in an owner-occupied single-family home. Ask us and we’ll help you register it.
Ratings, sizes, and features from York’s TM9E technical guide; warranty terms from York’s owner’s manual.
York furnace installation
Why Buy Your York Furnace From Platinum Air Care
Platinum Air Care has served homes across London and Southwestern Ontario since 1999. A new furnace is only as good as the way it goes in.
- One system, sized right. A furnace and air conditioner are one system, so we fit them as a matched pair, sized to your home and your ducts, not just matched to the old unit’s label.
- The ducts and the air, too. Because we are an indoor air company as well, we look at the airflow and ducts, not just the box in the basement, and can add whole-home air purification to the same system.
- Installed right. Your York furnace is installed by licensed HVAC technicians. More on furnace replacement.
- A warranty we back up. When your system is purchased and installed by Platinum Air Care, we don’t just offer the manufacturer warranty, we back it up.
- Service after the install. We repair and service what we install, and emergency service is available: furnace repair, AC repair, and all our heating and cooling services.
Reviews
What Homeowners Say About Platinum Air Care
Platinum Air Care is rated 4.9 from 2,300+ Google reviews across London and Southwestern Ontario, for air and water treatment, duct cleaning, and heating and cooling.
Complete the system
The York TM9E Pairs Well With
The TM9E comes ready for add-on cooling with a single-stage or two-stage air conditioner, and both air purifiers below mount on your furnace’s ductwork, out of sight. York’s variable-capacity YXV is matched with the York TM9V and YP9C furnaces instead. Replacing the air conditioner at the same time? See AC replacement.
-
York® YC3 13.4 SEER2 Air Conditioner
A 13.4 SEER2 single-stage central air conditioner: compact, basic cooling optimized for northern U.S. and Canadian climates.
See the YC3 -

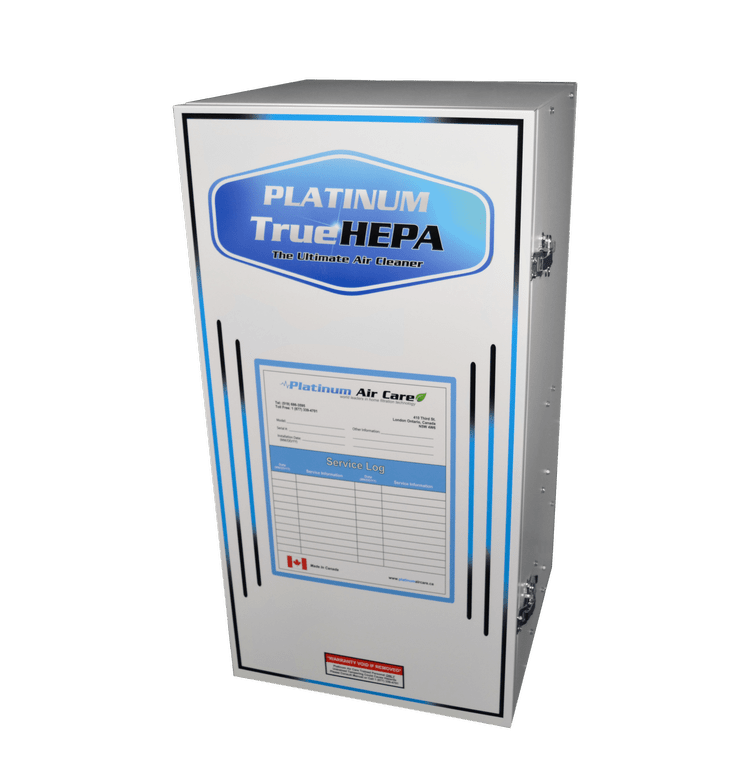

Platinum TrueHEPA System
A whole-home HEPA filter system for your furnace that stops 99.97% of particles as small as 0.3 microns.
See the Platinum TrueHEPA -
Platinum PURE Air Purifier
UV-C light and PCO in one duct-mounted unit, for when odors are an issue. It produces zero ozone.
See the Platinum PURE
