York TM9V 96% AFUE Two-Stage Variable-Speed Furnace
The York TM9V is a 96% AFUE natural gas furnace with a two-stage burner and a variable-speed ECM blower, in a 33-inch cabinet that fits tight spaces. Platinum Air Care installs the York TM9V in homes across London and Southwestern Ontario.
Installed by our licensed HVAC technicians. See the York furnaces and air conditioners we install
At a glance
- Price Range
- $$$
- Efficiency Range
- 96% AFUE
- Warranties
- Lifetime heat exchanger, 10-year parts*
York compact gas furnace
York TM9V: A 96% AFUE Two-Stage Gas Furnace
Every size of the TM9V is rated 96% AFUE (annual fuel utilization efficiency): over a heating season, about 96% of the gas it burns becomes heat for your home.
Its burner has two stages, a low stage at 65% of full input and a high stage for full heat, so the furnace can match its output to the weather instead of running flat out every time it starts. A variable-speed ECM blower moves the air, adjusting its speed to keep the airflow steady as the resistance from your filter and ducts changes.
The TM9V works with a communicating control or a conventional thermostat, and an adjustable delay timer lets it run both stages even on a single-stage thermostat. Thermostat installation
- 96%AFUE in every size
- 2 stageslow at 65% of full input, then full heat
- 33 in.cabinet height, for tight spaces
- 7 modelsfive inputs, 40,000 to 120,000 BTU/h
Figures from York’s TM9V technical guide.
Features
York TM9V Furnace Features
- Two-stage heat from a two-stage gas valve and a two-stage inducer, with a variable-speed ECM blower
- Runs both stages even on a single-stage thermostat, using an adjustable delay timer
- Compact 33-inch cabinet for a basement, closet, alcove, attic, recreation room, or garage
- Ships for upflow or horizontal (left or right) installation, and converts to downflow
- Tubular aluminized-steel primary heat exchanger, with a stainless-steel tube and aluminum-fin secondary heat exchanger
- Electronic hot surface ignition and a 100% shut-off main gas valve
- Built-in self-diagnostics with a fault code display
- Natural gas, and every model can be converted to propane (LP)
- Vents through a side wall or the roof in plastic pipe, as a two-pipe sealed combustion or a single-pipe system
- External air filter, so the filter or air cleaner can be matched to your home
- Insulated blower compartment, with quiet inducer, burner, and blower operation
- Protection against a blocked air intake, vent, or condensate drain
Benefits
Why a Two-Stage, Variable-Speed Furnace Like the TM9V
-
More heat from your gas
With 96% AFUE in every size, very little of the gas you pay for is lost, so more of it warms your home.
-
Even, consistent temperatures
Two stages let the TM9V shift its output to track the temperature more closely than a furnace that only runs at full heat.
-
Quiet, steady airflow
The variable-speed ECM blower sets its own pace to keep the airflow steady, inside an insulated blower compartment.
-
Cleaner air, all year
Continuous fan settings keep air moving through your filter, and the filter sits outside the cabinet, with room for a better one or a whole-home air cleaner.
Compare York’s gas furnaces
- Single-stage York TM9E 95% AFUE One heat level and a five-speed ECM blower. See the TM9E
- Two-stage York TM9V 96% AFUE Two heat levels and a variable-speed ECM blower. You are here
- Modulating York YP9C Up to 98% AFUE Adjusts its input from 35% to 100% in 1% steps. See the YP9C
Have a Luxaire TM9V? Luxaire and York are made by the same company, and we service Luxaire furnaces, too. Luxaire TM9V
Technical specifications
York TM9V Technical Specifications
- Fuel
- Natural gas; every model can be converted to propane (LP)
- Efficiency
- 96% AFUE, every size
- Heating
- Two-stage gas valve and inducer; the low stage is 65% of full input
- Blower
- Variable-speed ECM, 1/2 to 1 HP by size
- Input range
- 40 to 120 MBH (40,000 to 120,000 BTU/h): five inputs, seven models
- Cabinet
- 33 inches tall; 14-1/2, 17-1/2, 21, or 24-1/2 inches wide
- Position
- Multi-position: upflow or horizontal (left or right), converts to downflow
- Controls
- Communicating (4-wire bus) or conventional thermostat
- Heat exchangers
- Tubular aluminized-steel primary; stainless-steel tube and aluminum-fin secondary
- Venting
- Plastic pipe, side wall or roof; two-pipe sealed combustion or single-pipe
- Air filter
- External, outside the furnace cabinet
- Warranty
- Lifetime heat exchanger, 10-year parts, 5-year unit replacement option*
York TM9V models
| Model | Input, high / low | Output, high / low | AFUE | Cabinet width | Nominal airflow |
|---|---|---|---|---|---|
| TM9V040A10MP12C | 40 / 26 | 38 / 25 | 96% | 14-1/2 in. | 1,000 CFM |
| TM9V060B12MP12C | 60 / 39 | 58 / 37 | 96% | 17-1/2 in. | 1,200 CFM |
| TM9V080B12MP12C | 80 / 52 | 77 / 50 | 96% | 17-1/2 in. | 1,200 CFM |
| TM9V080C16MP12C | 80 / 52 | 77 / 50 | 96% | 21 in. | 1,600 CFM |
| TM9V100C16MP12C | 100 / 65 | 96 / 62 | 96% | 21 in. | 1,600 CFM |
| TM9V100C20MP12C | 100 / 65 | 96 / 62 | 96% | 21 in. | 2,000 CFM |
| TM9V120D20MP12C | 120 / 78 | 115 / 75 | 96% | 24-1/2 in. | 2,000 CFM |
Which size fits depends on your home and your ducts, not just on the old furnace’s label. Furnace replacement and installation
*York’s limited warranty: register the furnace online within 90 days of installation (or of closing, for a new home) for the lifetime heat exchanger and 10-year parts warranties, and for the 5-year unit replacement option, which replaces the furnace if its heat exchanger fails from a covered defect within 5 years, in an owner-occupied single-family home. Ask us and we’ll help you register it.
York furnace installation
Why Buy Your York From Platinum Air Care
Platinum Air Care has served homes across London and Southwestern Ontario since 1999. A new furnace is only as good as the way it goes in.
- One system, sized right. A furnace and air conditioner are one system, so we fit them as a matched pair, sized to your home and your ducts. AC replacement
- The ducts and the air, too. Because we are an indoor air company as well, we look at the airflow and ducts, not just the box in the basement, and can add whole-home air purification to the same system.
- Installed right. Your York furnace is installed by licensed HVAC technicians.
- A warranty we back up. When your furnace is purchased and installed by Platinum Air Care, we don’t just offer the manufacturer warranty, we back it up. York’s longest warranties need the furnace registered online within 90 days of installation: ask us and we’ll help you register it.
- Service after the install. We repair and service what we install, and emergency service is available: furnace repair and the rest of our heating and cooling services.
Reviews
What Homeowners Say About Platinum Air Care
Platinum Air Care is rated 4.9 from 2,300+ Google reviews across London and Southwestern Ontario, for air and water treatment, duct cleaning, and heating and cooling.
Complete the system
The York TM9V Pairs Well With
A furnace and air conditioner are one system, and both air purifiers below mount on your furnace’s ductwork, out of sight.
-

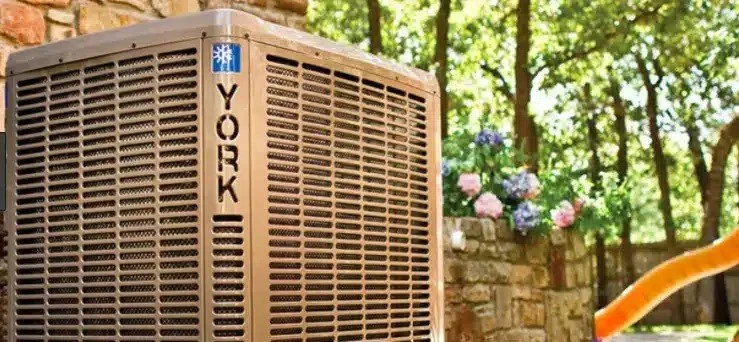

York YC6 Air Conditioner
A 16+ SEER2 central air conditioner, two-stage in the 2- to 5-ton sizes. The TM9V’s blower has high and low cooling airflow settings to match.
See the YC6 -
Platinum TrueHEPA System
A whole-home HEPA filter system for your furnace that stops 99.97% of particles as small as 0.3 microns.
See the Platinum TrueHEPA -
Platinum PURE Air Purifier
UV-C light and PCO in one duct-mounted unit, for when odors are an issue. It produces zero ozone.
See the Platinum PURE
Thinking about a heat pump? The TM9V’s blower settings include heat pump airflow, so it can be the furnace half of a hybrid system, where the furnace backs up the heat pump in extreme cold. Heat pumps
